Description
Ironman 4×4 Rear Leaf Spring Kit
Suited for 2005-2023 Toyota Tacoma
Rear leaf spring kit for 2005-2023 Toyota Tacoma with additional accessories needed for install including u-bolt kit and bushing kit.

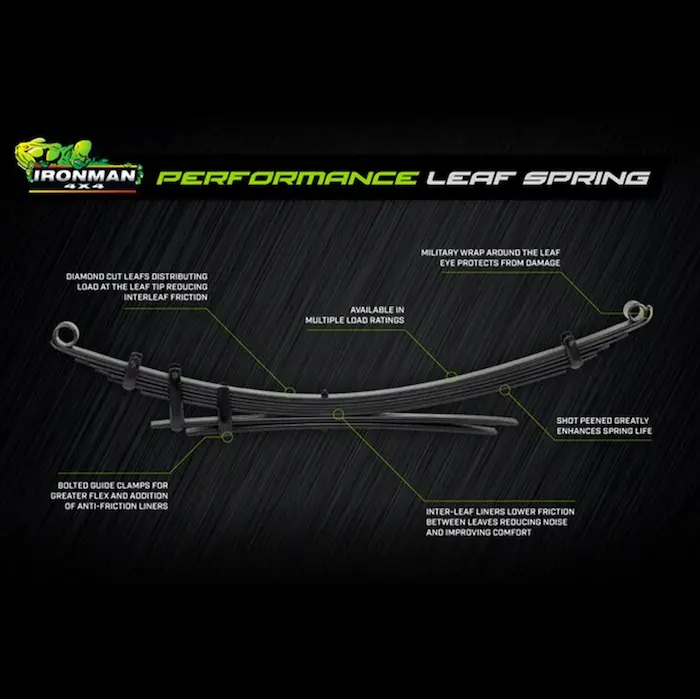

Ironman 4×4 Leaf springs are produced from high quality steel that meets Australian standard AS1447. Shot-peened and load tested to ensure maximum longevity.
Available for different load varieties, to ensure the ride is perfectly matched to your requirements by being both strong and flexible.
This kit includes everything you need to install the leaf springs on your Tacoma, polyurethane bushings and longer U-bolts, making life easy!
Specifications
- Estimated Lift: 2″
- Package Details: Kit
- Attributes: Includes 1 Driver Side and 1 Near Side Leaf Spring
Kit Includes:
- Rear Leaf Springs(depending on selection will include one of the following):
- TOY066BD/S Rear Medium Leaf Springs – Drivers Side (1) and TOY066BN/S Rear Medium Leaf Springs – Near Side (1)
- TOY066CD/S Rear Heavy Leaf Springs – Drivers Side (1) and TOY066CN/S Rear Medium Leaf Springs – Near Side (1)
- 437UBK – U-Bolt Kit (2) (included with medium load springs only)
- 678UBK – U-Bolt Kit (2) (included with heavy load springs only)
- 1191UK – Spring Bushing Kit (1)
**NOTE** Please reuse your Toyota OEM rear shackles with their stock bushings. The included Ironman 4×4 poly bushings are for the front and rear eyelets of the Ironman 4×4 TOY066 leaf springs. Please do not remove the factory bushing from the rear shackle, leave the bushing in and reuse your stock shackles.
| TOY066B | ||||||
| Length A | Length B | Camber | Leaves | Width | Eye A | Eye B |
| 705 | 705 | 185/175 | 5+2 | 60 | 40 | 40 |
| TOY066C | ||||||
| Length A | Length B | Camber | Leaves | Width | Eye A | Eye B |
| 705 | 705 | 185/180 | 6+2 | 60 | 40 | 40 |
Diagram:
