Description
Ironman 4×4 DeltaWing 90º Awning
The DeltaWing 90 Degree Awning provides a simple and affordable blackout shade designed in 3 different sizes to accommodate any rig!

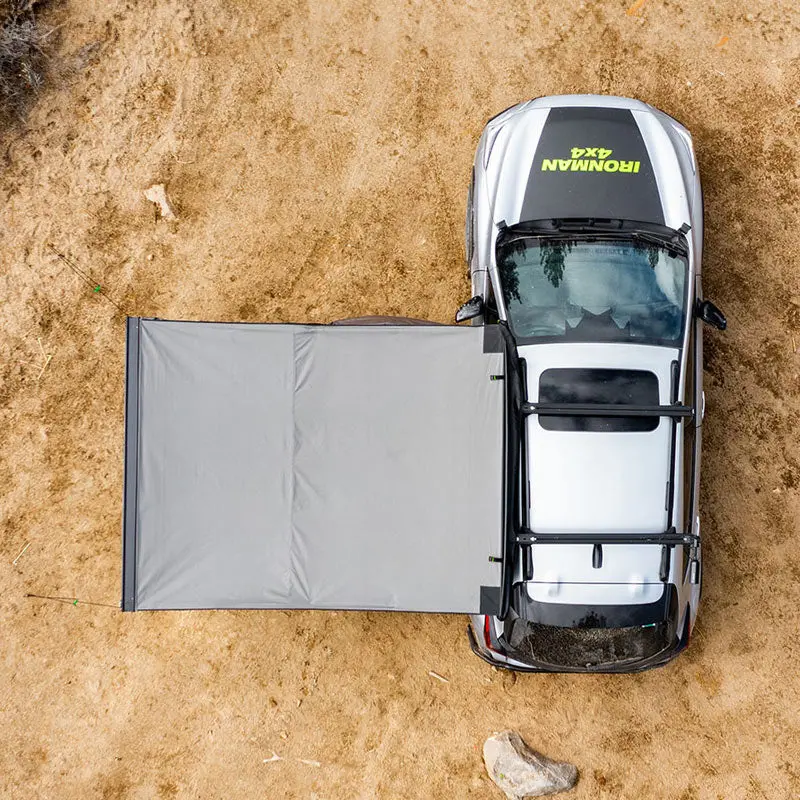

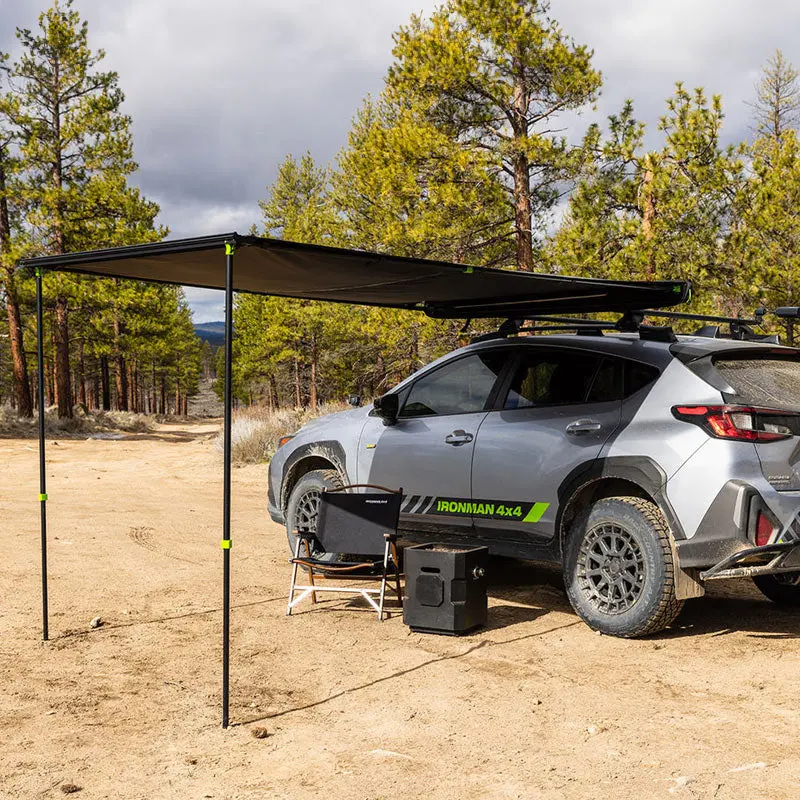

90-DEGREES OF COVERAGE: Designed to roll out to cover a specific side of your vehicle, trailer, or RV with multiple sizes to choose from. This is a great option to fit your rig and setup no matter how big or small.
EASY ROLLOUT SET-UP: Simply roll out, set up the support poles, and anchor down with the included guy lines: an easy, affordable, instant solution for an awning.
BLACKOUT SHADE: Blackout coating provides stronger UV protection and less heat penetration to help keep cool on hot summer days.
INTEGRATED LIGHTS: Integrated LED lights for nighttime use. These lights can easily be powered with a USB plug and are dimmable with 3 different lighting modes.
| AWNING SIZE | |||
| AWNING SIZE | 4.6 ft. (1.4 m) Awning | 6.6 ft. (2.0 m) Awning | 8.2 ft. (2.5 m) Awning |
| DIMENSIONS (L x W x H) |
55.1″ x 78.7″ x 82.7″ (1400 x 2000 x 2100 mm) |
78.7″ x 98.4″ x 82.7″ (2000 x 2500 x 2100 mm) |
98.4″ x 98.4″ x 82.7″ (2500 x 2500 x 2100 mm) |
| COVERAGE | 30 ft.2 (2.8 m2) |
54 ft.2 (5 m2) |
67 ft.2 (6.25 m2) |
| BACKBOARD | 56.3″ (1430 mm) |
79.9″ (2030 mm) |
99.6″ (2530 mm) |
| WEIGHT | 18.7 lbs (8.5 kg) |
24.9 lbs (11.3 kg) |
29.8 lbs (13.5 kg) |
| AWNING TYPE | Roll out/supported | ||
| CONSTRUCTION | |||
| AWNING FABRIC | 320gsm ripstop nylon with blackout coating | ||
| STORAGE BAG | 1680D UV50+ black polyester (anti-scratching) | ||
| SUPPORT POLES | 0.9″/1″ (22/25 mm) black aluminum telescopic poles | ||
| MOUNTING BRACKET | Heavy duty steel L-Bracket | Hardware included | ||
| OTHER | Reflective guy ropes with tensioner and pegs | ||
| LIGHTING | |||
| LED LIGHT STRIP | Tri-colored light with dimmer | ||
| CABLE | 12.5 ft. (3.8 m) cable with USB plug | ||
